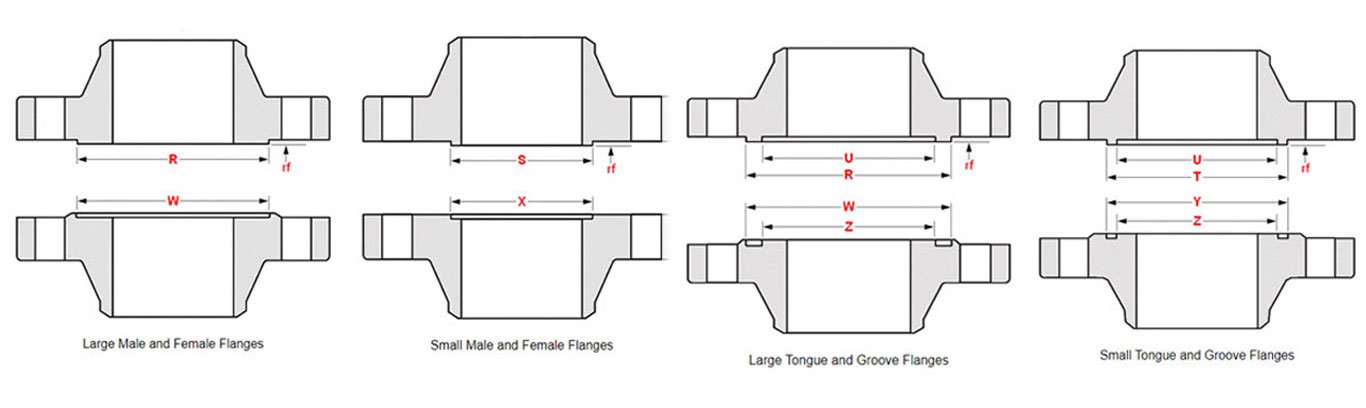

ASME B16.5 Male-Female and Tongue & Groove Flange Dimensions
NPS R S T U W X Y Z
1/2 35.05 18.28 35.05 25.4 36.57 19.81 36.57 23.87
3/4 42.92 23.87 42.92 33.27 44.45 25.4 44.45 31.75
1 50.8 30.22 47.75 38.1 52.32 31.75 49.27 36.57
1¼ 63.5 38.1 57.15 47.75 65.02 39.62 58.67 45.97
1½ 73.15 44.45 63.5 53.84 74.67 45.97 65.02 52.32
2 91.94 57.15 82.55 73.15 93.72 58.67 84.07 71.37
2½ 104.64 68.32 95.25 85.85 106.42 69.85 96.77 84.07
3 127 84.07 117.34 107.95 128.52 85.85 119.12 106.42
3½ 139.7 96.77 130.04 120.65 141.22 98.55 131.82 119.12
4 157.22 109.47 144.52 131.82 158.75 111.25 146.05 130.04
5 185.67 136.65 172.97 160.27 187.45 138.17 174.75 158.75
6 215.9 162.05 203.2 190.5 217.42 163.57 204.72 188.97
8 269.74 212.85 254 238.25 271.52 214.37 255.52 236.47
10 323.85 266.7 304.8 285.75 325.37 268.22 306.32 284.22
12 381 317.5 361.95 342.9 382.52 319.02 363.47 341.37
14 412.75 349.25 393.7 374.65 414.27 350.77 395.22 373.12
16 469.9 400.05 447.54 425.45 471.42 401.57 449.32 423.92
18 533.4 450.85 511.04 488.95 534.92 452.37 512.82 487.42
20 584.2 501.65 558.8 533.4 585.72 503.17 560.32 531.87
24 692.15 603.25 666.75 641.35 693.67 604.77 668.27 639.82
