Forged Threaded and Socket Weld Fittings Catalogue Download

Dimensions of Threaded Elbows 90°/45° ASME B16.11 (NPS 1/2 to 4, Class 2000)

Threaded 90°/45° Elbows Dimension
NPS Min Thread Length Outside Dia Min WT Center to End
B J D G 90°
A		 45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
1.1/4 17 18 56 3.89 44 33
1.1/2 17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
2.1/2 23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79

Dimensions of Threaded Elbows 90°/45° ASME B16.11 (NPS 1/2 to 4, Class 3000)

NPS Min Thread Length Outside Dia Min WT Center to End
B J D G 90°
A		 45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
1.1/4 17 18 62 5.28 51 35
1.1/2 17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
2.1/2 23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79

Dimensions of Threaded Elbows 90°/45° ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Min Thread Length Outside Dia Min WT Center to End
B J D G 90°
A		 45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1.1/4 17 18 75 10.59 60 43
1.1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2.1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

Dimensions of Threaded Street Elbows ASME B16.11 (NPS 1/2 to 2, Class 3000)

Threaded Street Elbows Dimension
NPS Center to Female End Center to Male End Outside Dia Min WT Min WT
A C D G1 G2
1/2 28 41 38 4.09 4.16
3/4 35 48 44 4.32 4.88
1 44 57 51 4.98 5.56
1.1/4 51 66 62 5.28 5.56
1.1/2 54 71 70 5.56 6.25
2 64 84 84 7.14 7.64
NPS Min Length Internal Thread Min Length Male Thread
B J1 J2
1/2 10.9 13.6 14
3/4 12.7 13.9 16
1 14.7 17.3 19
1.1/4 17 18 21
1.1/2 17.8 18.4 21
2 19 19.2 22

Dimensions of Threaded Street Elbows ASME B16.11 (NPS 1/2 to 2, Class 6000)

NPS Center to Female End Center to Male End Outside Dia Min WT Min WT
A C D G1 G2
1/2 35 48 44 8.15 6.53
3/4 44 57 51 8.53 6.86
1 51 66 62 9.93 7.95
1.1/4 54 71 70 10.59 8.48
1.1/2 64 84 84 11.07 8.89
2 83 105 102 12.09 9.70
NPS Min Length Internal Thread Min Length Male Thread
B J1 J2
1/2 10.9 13.6 14
3/4 12.7 13.9 16
1 14.7 17.3 19
1.1/4 17 18 21
1.1/2 17.8 18.4 21
2 19 19.2 22

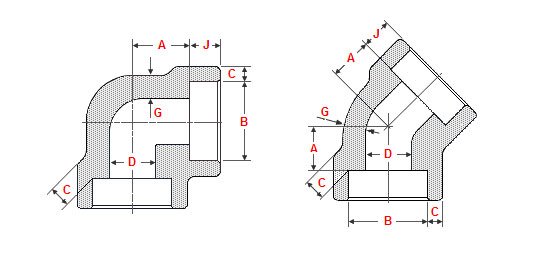

Dimensions of Socket Weld Elbows 90°/45° ASME B16.11 (NPS 1/2 to 4, Class 3000)

Socket Weld 90°/45° Elbows Dimension
NPS Socket Bore Depth Socket Bore DIA Socket WT Body WT
B J D C G
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55
1.1/4 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85
1.1/2 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55
2.1/2 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55
NPS Center to bottom of socket
A
90° 45°
1/2 15.5 11.5
3/4 19.5 12.5
1 22 14
1.1/4 27 17
1.1/2 32 21
2 38 25
2.1/2 41.5 29
3 57.5 31.5
4 66.5 41.5

Dimensions of Socket Weld Elbows 90°/45° ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Socket Bore Depth Socket Bore DIA Socket WT Body WT
B J D C G
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35
1.1/4 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35
1.1/2 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75
NPS Center to bottom of socket
A
90° 45°
1/2 19.5 12.5
3/4 22.5 14.5
1 27 17
1.1/4 32 21
1.1/2 38 25
2 41 29

Dimensions of Threaded Tees & Crosses ASME B16.11 (NPS 1/2 to 4, Class 2000)

Threaded Tees & Crosses Dimensions
NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Dimensions of Threaded Tees & Crosses ASME B16.11 (NPS 1/2 to 4, Class 3000)

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18

Dimensions of Threaded Tees & Crosses ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1.1/4 17 18 75 60 10.59
1.1/2 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2.1/2 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

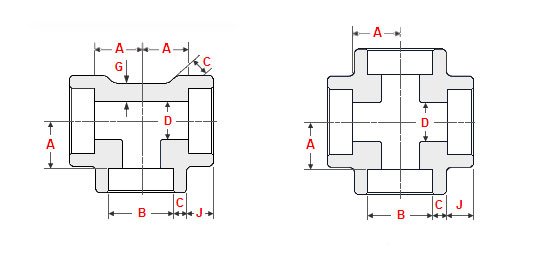

Dimensions of Socket Weld Tee & Cross ASME B16.11 (NPS 1/2 to 4, Class 3000)

Socket Weld Tee & Cross Dimensions
NPS Socket Bore Depth Socket Bore dia
B J D
1/2 21.95
21.70		 10 16.6
15
3/4 27.30
27.05		 13 21.7
20.2
1 34.05
33.80		 13 27.4
25.9
1.1/4 42.80
42.55		 13 35.8
34.3
1.1/2 48.90
48.65		 13 41.7
40.1
2 61.35
61.10		 16 53.5
51.7
2.1/2 74.20
73.80		 16 64.2
61.2
3 90.15
89.80		 16 79.5
46.4
4 115.80
115.45		 19 103.8
100.7
NPS Socket
WT		 Body
WT		 Center to bottom of socket
C G A
1/2 4.65
4.10		 3.75 15.5
3/4 4.90
4.25		 3.90 19.5
1 5.70
5.00		 4.55 22
1.1/4 6.05
5.30		 4.85 27
1.1/2 6.35
5.55		 5.10 32
2 6.95
6.05		 5.55 38
2.1/2 8.75
7.65		 7.00 41.5
3 9.50
8.30		 7.60 57.5
4 10.70
9.35		 8.55 66.5

Dimensions of Socket Weld Tee & Cross ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Socket Bore Depth Socket Bore dia
B J D
1/2 21.95
21.70		 10 12.5
11
3/4 27.30
27.05		 13 16.3
14.8
1 34.05
33.80		 13 21.5
19.9
1.1/4 42.80
42.55		 13 30.2
28.7
1.1/2 48.90
48.65		 13 34.7
33.2
2 61.35
61.10		 16 43.6
42.1
NPS Socket
WT		 Body
WT		 Center to bottom of socket
C G A
1/2 5.95
5.20		 4.80 19.5
3/4 6.95
6.05		 5.55 22.5
1 7.90
6.95		 6.35 27
1.1/4 7.90
6.95		 6.35 32
1.1/2 8.90
7.80		 7.15 38
2 10.90
9.50		 8.75 41

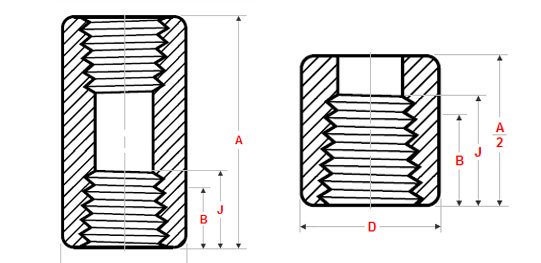

Dimensions of Threaded Full and Half Couplings ASME B16.11 (NPS 1/2 to 4, Class 3000)

Threaded Full and Half Couplings Dimensions
NPS Length Outside Dia Min Thread Length
A D B J
1/2 48 28 10.9 13.6
3/4 51 35 12.7 13.9
1 60 44 14.7 17.3
1.1/4 67 57 17 18
1.1/2 79 64 17.8 18.4
2 86 76 19 19.2
2.1/2 92 92 23.6 28.9
3 108 108 25.9 30.5
4 121 140 27.7 33

Dimensions of Threaded Full and Half Couplings ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Length Outside Dia Min Thread Length
A D B J
1/2 48 38 10.9 13.6
3/4 51 44 12.7 13.9
1 60 57 14.7 17.3
1.1/4 67 64 17 18
1.1/2 79 76 17.8 18.4
2 86 92 19 19.2
2.1/2 92 108 23.6 28.9
3 108 127 25.9 30.5
4 121 159 27.7 33

Dimensions of Socket Weld Full and Half Couplings ASME B16.11 (NPS 1/2 to 4, Class 3000)

Socket Weld Couplings Dimensions
NPS Socket Bore Depth Socket Bore DIA Socket wall THK
B J D C
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00
1.1/4 42.80
42.55		 13 35.8
34.3		 6.05
5.30
1.1/2 48.90
48.65		 13 41.7
40.1		 6.35
5.55
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05
2.1/2 74.20
73.80		 16 64.2
61.2		 8.75
7.65
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35
NPS Laying lengths
Coupling
E		 Half coupling
F
1/2 9.5 22.5
3/4 9.5 23.5
1 13 29
1.1/4 13 30
1.1/2 13 32
2 19 41
2.1/2 19 42.5
3 19 44.5
4 19 47.5

Dimensions of Socket Weld Full and Half Couplings ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Socket Bore Depth Socket Bore DIA Socket wall THK
B J D C
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95
1.1/4 42.80
42.55		 13 30.2
28.7		 7.90
6.95
1.1/2 48.90
48.65		 13 34.7
33.2		 8.90
7.80
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50
NPS Laying lengths
Coupling
E		 Half coupling
F
1/2 9.5 22.5
3/4 9.5 23.5
1 13 29
1.1/4 13 30
1.1/2 13 32
2 19 41

Dimensions of Socket Weld Reducing Coupling ASME B16.11 (Class 3000)

Socket Weld Reducing Coupling Dimensions
NPS Socket Bore Depth
Socket
J		 Bore dia
B1 B2 B1 B2 D
3/4
1/2		 27.30
27.05		 21.95
21.70		 13 10 16.6
15
1
3/4		 34.05
33.80		 27.30
27.05		 13 13 21.7
20.2
1
1/2		 34.05
33.80		 21.95
21.70		 13 10 16.6
15
1.1/4
1		 42.80
42.55		 34.05
33.80		 13 13 27.4
25.9
1.1/2
1		 48.90
48.65		 34.05
33.80		 13 13 27.4
25.9
1.1/2
3/4		 48.90
48.65		 27.30
27.05		 13 13 21.7
20.2
1.1/2
1/2		 48.90
48.65		 21.95
21.70		 13 10 16.6
15
2
1.1/2		 61.35
61.10		 48.90
48.65		 16 13 41.7
40.1
2
1		 74.20
73.80		 34.05
33.80		 16 13 27.4
25.9
NPS Length Coupling Diameter
Coupling
Q R
3/4
1/2		 35 36
1
3/4		 38.1 45.2
1
1/2		 38.1 45.2
1.1/4
1		 38.1 55.1
1.1/2
1		 38.1 60
1.1/2
3/4		 38.1 60
1.1/2
1/2		 38.1 60
2
1.1/2		 51.3 74.9
2
1		 51.3 74.9

Dimensions of Socket Weld Reducing Coupling ASME B16.11 (Class 6000)

NPS Socket Bore Depth
Socket
J		 Bore dia
B1 B2 B1 B2 D
3/4
1/2		 27.30
27.05		 21.95
21.70		 13 10 12.5
11
1
3/4		 34.05
33.80		 27.30
27.05		 13 13 16.3
14.8
1
1/2		 34.05
33.80		 21.95
21.70		 13 10 12.5
11
1.1/4
1		 42.80
42.55		 34.05
33.80		 13 13 21.5
19.9
1.1/2
1		 48.90
48.65		 34.05
33.80		 13 13 21.5
19.9
1.1/2
3/4		 48.90
48.65		 27.30
27.05		 13 13 16.3
14.8
1.1/2
1/2		 48.90
48.65		 21.95
21.70		 13 10 12.5
11
2
1.1/2		 61.35
61.10		 48.90
48.65		 16 13 34.7
33.2
2
1		 74.20
73.80		 34.05
33.80		 16 13 21.5
19.9
NPS Length Coupling Diameter
Coupling
Q R
3/4
1/2		 35 40.1
1
3/4		 38.1 50
1
1/2		 38.1 50
1.1/4
1		 38.1 57.9
1.1/2
1		 38.1 65
1.1/2
3/4		 38.1 65
1.1/2
1/2		 38.1 65
2
1.1/2		 51.3 82
2
1		 51.3 82

Dimensions of Threaded End Caps ASME B16.11 (NPS 1/2 to 4, Class 3000)

Threaded End Caps Dimensions
NPS Length Outside Dia Min WT Min Thread Length
A D G B J
1/2 32 28 6.4 10.9 13.6
3/4 37 35. 6.4 12.7 13.9
1 41 44 9.7 14.7 17.3
1.1/4 44 57 9.7 17 18
1.1/2 44 64 11.2 17.8 18.4
2 48 76 12.7 19 19.2
2.1/2 60 92 15.7 23.6 28.9
3 65 108 19 25.9 30.5
4 68 140 22.4 27.7 33

Dimensions of Threaded End Caps ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Length Outside Dia Min WT Min Thread Length
A D G B J
1/2 33 38 7.9 10.9 13.6
3/4 38 44 7.9 12.7 13.9
1 43 57 11.2 14.7 17.3
1.1/4 46 64 11.2 17 18
1.1/2 48 76 12.7 17.8 18.4
2 51 92 15.7 19 19.2
2.1/2 64 108 19 23.6 28.9
3 68 127 22.4 25.9 30.5
4 75 159 28.4 27.7 33

Dimensions of Socket Weld End Caps ASME B16.11 (NPS 1/2 to 4, Class 3000)

Socket Weld End Caps Dimensions
NPS Socket Bore Depth Socket Length Cap Dia Cap
B J Q R
1/2 21.95
21.70		 10 19 32
3/4 27.30
27.05		 13 23 38
1 34.05
33.80		 13 26 45
1.1/4 42.80
42.55		 13 28 55
1.1/2 48.90
48.65		 13 30 65
2 61.35
61.10		 16 36 75
2.1/2 74.20
73.80		 16 38 92
3 90.15
89.80		 16 42 110
4 115.80
115.45		 19 48 140

Dimensions of Threaded End Caps ASME B16.11 (NPS 1/2 to 4, Class 6000)

NPS Socket Bore Depth Socket Length Cap Dia Cap
B J Q R
1/2 21.95
21.70		 10 22 34
3/4 27.30
27.05		 13 26 41
1 34.05
33.80		 13 28 50
1.1/4 42.80
42.55		 13 30 58
1.1/2 48.90
48.65		 13 32 66.5
2 61.35
61.10		 16 38 85

Dimensions of Threaded Hex Head Bushings ASME B16.11 (NPS 1/2 to 4)

Threaded Hex Head Bushings Dimensions
NPS Min Length
E		 Min Hex Height
C		 Nominal
F
1/2 14 5 22
3/4 16 6 27
1 19 6 35
1.1/4 21 7 44.5
1.1/2 21 8 51
2 22 9 63.5
2.1/2 27 10 76
3 28 10 89
4 32 13 117.5

Dimensions and Weight of Butt Weld ASME B16.9 Short Pattern Lap Joint Stub End

Nominal Pipe Size Outside Diameter of Barrel Short Pattern Length,
F 		Radius of Fillet,
R 		Diameter of Lap,
G
Max Min
1/2 22.8 20.5 51 3 35
3/4 28.1 25.9 51 3 43
1 35.0 32.6 51 3 51
1 1/4 43.6 41.4 51 5 64
1 1/2 49.9 47.5 51 6 73
2 62.4 59.5 64 8 92
2 1/2 75.3 72.2 64 8 105
3 91.3 88.1 64 10 127
3 1/2 104.0 100.8 76 10 140
4 116.7 113.5 76 11 157
5 144.3 140.5 76 11 186
6 171.3 167.5 89 13 216
8 222.1 218.3 102 13 270
10 277.2 272.3 127 13 324
12 328.0 323.1 152 13 381
14 359.9 354.8 152 13 413
16 411.0 405.6 152 13 470
18 462.0 456.0 152 13 533
20 514.0 507.0 152 13 584
22 565.0 558.0 152 13 641
24 616.0 609.0 152 13 692

Dimensions of Threaded Hex Plug ASME B16.11

Hex Plug Dimensions
NPS Min Length
E		 Min Hex Height
J		 Nominal
F
1/2 14 8 22
3/4 16 10 27
1 19 10 35
1.1/4 21 14 44.5
1.1/2 21 16 51
2 22 18 63.5
2.1/2 27 19 76
3 28 21 89
4 32 25 117.5

Dimensions of Threaded Square Head Plug ASME B16.11

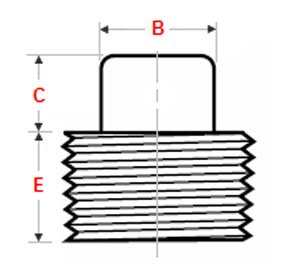

Square Head Plug Dimensions
NPS Min Length
E		 Min Square Height
C		 Min Width Flats
B
1/2 14 10 14
3/4 16 11 16
1 19 13 21
1.1/4 21 14 24
1.1/2 21 16 28
2 22 18 32
2.1/2 27 19 36
3 28 21 41
4 32 25 65

Dimensions of Threaded Round Head Plug ASME B16.11

Round Head Plug Dimensions
NPS Min Length
A		 Nominal Head Dia
D		 Min Length
E
1/2 44 21 14
3/4 44 27 16
1 51 33 19
1.1/4 51 43 21
1.1/2 51 48 21
2 64 60 22
2.1/2 70 73 37
3 70 89 28
4 76 114 32

Dimensions of Forged Adapter ASME B16.11

Forged Adapter Dimensions

Dimensions of Forged Union ASME B16.11

Forged Union Dimensions
DIMENSIONS OF THREADED UNION (BS3799) (in mm)
Nom Pipe Size (NPS) Pipe End Min Socket Bore Dia. Socket Wall Min. Water Way Bore Laying Length Male Flange Min. Nut Min. Threads Per 25.4 Max Bearing Min. Depth of Socket Min.
  A B C D E F G H J K
1 45.5 34.04
33.78		 4.95 28.14
27.74		 34.3
26.2		 4.57 4.44 11 1.85 12.7
½ 31.2 21.84
21.59		 4.06 17.47
17.07		 26.9
20.6		 3.68 3.68 14 1.50 9.6
¼ 21.8 14.22
13.97		 3.30 9.85
9.45		 22.4
19.0		 3.17 3.17 19 1.24 9.6
1/8 21.8 10.92
10.67		 3.17 6.83
6.43		 22.4
19.0		 3.17 3.17 16 1.24 9.6
3/8 25.9 17.78
17.53		 3.48 13.92
13.51		 26.9
20.6		 3.43 3.43 14 1.37 9.6
¾ 37.1 27.18
26.92		 4.27 21.79
21.39		 31.8
25.4		 4.06 4.06 11 1.68 12.7
11/4 54.9 42.67
42.42		 5.28 35.76
35.36		 40.6
32.5		 5.33 5.21 11 2.13 12.7
21/2 91.7 74.17
73.66		 7.65 64.72
64.31		 61.7
52.1		 7.49 7.11 8 3.07 15.8
3 109.2 90.17
89.66		 8.31 77.67
77.27		 63.8
53.6		 8.25 8.00 8 3.53 15.8
11/2 61.5 48.77
48.51		 5.54 41.61
41.20		 42.2
34.0		 5.84 5.59 10 2.31 12.7
2 75.2 61.47
61.21		 6.05 52.53
52.12		 45.3
37.3		 6.60 6.35 10 2.69 15.8

Dimensions of Forged Threaded Boss ASME B16.11

Forged Threaded Boss Dimensions

Dimensions of Threaded Swage Nipple ASME B16.11

Threaded Swage Nipple Dimensions
NPS End To End “A” Wall Thickness Outside Diameter
T1 T2 Large End D1 Small End D2
Sch40 (STD) Sch80 (XS) Sch160 XXS Sch40 (STD) Sch80 (XS) Sch160 XXS
1/4”x1/8” 57 2.2 3.0 3.7 6.1 1.7 2.4     13.7 10.3
3/8”x1/8” 64 2.3 3.2 4.0 6.4 1.7 2.4     17.1 10.3
3/8”x1/4” 64 2.3 3.2 4.0 6.4 2.2 3.0     17.1 13.7
1/2”x1/8” 70 2.8 3.7 4.8 7.5 1.7 2.4     21.3 10.3
1/2”x1/4” 70 2.8 3.7 4.8 7.5 2.2 3.0     21.3 13.7
1/2”x3/8” 70 2.8 3.7 4.8 7.5 2.3 3.2     21.3 17.1
3/4”x1/8” 76 2.9 3.9 5.6 7.8 1.7 2.4     26.7 10.3
3/4’x1/4” 76 2.9 3.9 5.6 7.8 2.2 3.0     26.7 13.7
3/4”x3/8” 76 2.9 3.9 5.6 7.8 2.3 3.2     26.7 17.1
3/4”x1/2” 76 2.9 3.9 5.6 7.8 2.8 3.7 4.8 7.5 26.7 21.3
1”x1/8” 89 3.4 4.5 6.4 9.1 1.7 2.4     33.4 10.3
1”x1/4” 89 3.4 4.5 6.4 9.1 2.2 3.0     33.4 13.7
1”x3/8” 89 3.4 4.5 6.4 9.1 2.3 3.2     33.4 17.1
1”x1/2” 89 3.4 4.5 6.4 9.1 2.8 3.7 4.8 7.5 33.4 21.3
1”x3/4” 89 3.4 4.5 6.4 9.1 2.9 3.9 5.6 7.8 33.4 26.7
1-1/4”x1/8” 102 3.6 4.9 6.4 9.7 1.7 2.4     42.2 10.3
1-1/4”x1/4” 102 3.6 4.9 6.4 9.7 2.2 3.0     42.2 13.7
1-1/4”x3/8” 102 3.6 4.9 6.4 9.7 2.3 3.2     42.2 17.1
1-1/4”x1/2” 102 3.6 4.9 6.4 9.7 2.8 3.7 4.8 7.5 42.2 21.3
1-1/4”x3/4” 102 3.6 4.9 6.4 9.7 2.9 3.9 5.6 7.8 42.2 26.7
1-1/4”x1” 102 3.6 4.9 6.4 9.7 3.4 4.5 6.4 9.1 42.2 33.4
1-1/2”x1/8” 114 3.7 5.1 7.1 10.2 1.7 2.4     48.3 10.3
1-1/2”x1/4” 114 3.7 5.1 7.1 10.2 2.2 3.0     48.3 13.7
1-1/2”x3/8” 114 3.7 5.1 7.1 10.2 2.3 3.2     48.3 17.1
1-1/2”x1/2” 114 3.7 5.1 7.1 10.2 2.8 3.7 4.8 7.5 48.3 21.3
1-1/2”x3/4” 114 3.7 5.1 7.1 10.2 2.9 3.9 5.6 7.8 48.3 26.7
1-1/2”x1” 114 3.7 5.1 7.1 10.2 3.4 4.5 6.4 9.1 48.3 33.4
1-1/2”x1-1/4” 114 3.7 5.1 7.1 10.2 3.6 4.9 6.4 9.7 48.3 42.2
2”x1/8” 165 3.9 5.5 8.7 11.1 1.7 2.4     60.3 10.3
2”x1/4” 165 3.9 5.5 8.7 11.1 2.2 3.0     60.3 13.7
2”x3/8” 165 3.9 5.5 8.7 11.1 2.3 3.2     60.3 17.1
2”x1/2” 165 3.9 5.5 8.7 11.1 2.8 3.7 4.8 7.5 60.3 21.3
2”x3/4” 165 3.9 5.5 8.7 11.1 2.9 3.9 5.6 7.8 60.3 26.7
2”x1” 165 3.9 5.5 8.7 11.1 3.4 4.5 6.4 9.1 60.3 33.4
2”x1-1/4” 165 3.9 5.5 8.7 11.1 3.6 4.9 6.4 9.7 60.3 42.2
2”x1-1/2” 165 3.9 5.5 8.7 11.1 3.7 5.1 7.1 10.2 60.3 48.3
2-1/2”x1/8” 178 5.2 7.0 9.5 14.0 1.7 2.4     73.0 10.3
2-1/2”x1/4” 178 5.2 7.0 9.5 14.0 2.2 3.0     73.0 13.7
2-1/2”x3/8” 178 5.2 7.0 9.5 14.0 2.3 3.2     73.0 17.1
2-1/2”x1/2” 178 5.2 7.0 9.5 14.0 2.8 3.7 4.8 7.5 73.0 21.3
2-1/2”x3/4” 178 5.2 7.0 9.5 14.0 2.9 3.9 5.6 7.8 73.0 26.7
2-1/2”x1” 178 5.2 7.0 9.5 14.0 3.4 4.5 6.4 9.1 73.0 33.4
2-1/2”x1-1/4” 178 5.2 7.0 9.5 14.0 3.6 4.9 6.4 9.7 73.0 42.2
2-1/2”x1-1/2” 178 5.2 7.0 9.5 14.0 3.7 5.1 7.1 10.2 73.0 48.3
2-1/2”x2” 178 5.2 7.0 9.5 14.0 3.9 5.5 8.7 11.1 73.0 60.3
3”x1/8” 203 5.5 7.6 11.1 15.2 1.7 2.4 3.2 4.8 88.9 10.3
3”x1/4” 203 5.5 7.6 11.1 15.2 2.2 3.0 3.7 6.1 88.9 13.7
3”x3/8” 203 5.5 7.6 11.1 15.2 2.3 3.2 4.0 6.4 88.9 17.1
3”x1/2” 203 5.5 7.6 11.1 15.2 2.8 3.7 4.8 7.5 88.9 21.3
3”x3/4” 203 5.5 7.6 11.1 15.2 2.9 3.9 5.6 7.8 88.9 26.7
3”x1” 203 5.5 7.6 11.1 15.2 3.4 4.5 6.4 9.1 88.9 33.4
3”x1-1/4” 203 5.5 7.6 11.1 15.2 3.6 4.9 6.4 9.7 88.9 42.2
3”x1-1/2” 203 5.5 7.6 11.1 15.2 3.7 5.1 7.1 10.2 88.9 48.3
3”x2” 203 5.5 7.6 11.1 15.2 3.9 5.5 8.7 11.1 88.9 60.3
3”x2-1/2” 203 5.5 7.6 11.1 15.2 5.2 7.0 9.5 14.0 88.9 73.0
3-1/2”x1/8” 203 5.7 8.1     1.7 2.4     101.6 10.3
3-1/2”x1/4” 203 5.7 8.1     2.2 3.0     101.6 13.7
3-1/2”x3/8” 203 5.7 8.1     2.3 3.2     101.6 17.1
3-1/2”x1/2” 203 5.7 8.1     2.8 3.7 4.8 7.5 101.6 21.3
3-1/2”x3/4” 203 5.7 8.1     2.9 3.9 5.6 7.8 101.6 26.7
3-1/2”x1” 203 5.7 8.1     3.4 4.5 6.4 9.1 101.6 33.4
3-1/2”x1-1/4” 203 5.7 8.1     3.6 4.9 6.4 9.7 101.6 42.2
3-1/2”x1-1/2” 203 5.7 8.1     3.7 5.1 7.1 10.2 101.6 48.3
3-1/2”x2” 203 5.7 8.1     3.9 5.5 8.7 11.1 101.6 60.3
3-1/2”x2-1/2” 203 5.7 8.1     5.2 7.0 9.5 14.0 101.6 73.0
3-1/2”x3” 203 5.7 8.1     5.5 7.6 11.1 15.2 101.6 88.9
4”x1/4” 229 6.0 8.6 13.5 17.1 2.2 3.0     114.3 13.7
4”x3/8” 229 6.0 8.6 13.5 17.1 2.3 3.2     114.3 17.1
4”x1/2” 229 6.0 8.6 13.5 17.1 2.8 3.7 4.8 7.5 114.3 21.3
4”x3/4” 229 6.0 8.6 13.5 17.1 2.9 3.9 5.6 7.8 114.3 26.7
4”x1” 229 6.0 8.6 13.5 17.1 3.4 4.5 6.4 9.1 114.3 33.4
4”x1-1/4” 229 6.0 8.6 13.5 17.1 3.6 4.9 6.4 9.7 114.3 42.2
4”x1-1/2” 229 6.0 8.6 13.5 17.1 3.7 5.1 7.1 10.2 114.3 48.3
4”x2” 229 6.0 8.6 13.5 17.1 3.9 5.5 8.7 11.1 114.3 60.3
4”x2-1/2” 229 6.0 8.6 13.5 17.1 5.2 7.0 9.5 14.0 114.3 73.0
4”x3” 229 6.0 8.6 13.5 17.1 5.5 7.6 11.1 15.2 114.3 88.9
4”x3-1/2” 229 6.0 8.6 13.5 17.1 5.7 8.1     114.3 101.6
