Buttweld Elbow - Manufacturer and Supplier of 90° Elbow, 45° Elbow, 180° Elbow - Prime Steel Corporation is a leading steel industry player known for its commitment to quality, innovation, and customer satisfaction. With a history of 25 Years, the corporation has established itself as a reliable provider of high-grade steel products and services. With a team of experienced professionals and a customer-centric approach, Prime Steel Corporation is preferred for those seeking top-quality steel solutions in today's dynamic market.
Understand the Piping System Requirements
Determine the Elbow Angle
Select the Elbow Radius
Material Selection
Check for Seamless or Welded
Specialty Fittings
ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10
Seamless Fittings: 1/2" - 24"
Welded Fittings: 4" - 72"
Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
45 degree Elbow, 90 degree Elbow, 180 degree Elbow
Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, LTCS, Nickel
oil and gas, petrochemicals, power generation, and water treatment
A Butt weld Elbow is a type of pipe fitting that is used to change the direction of the flow in a piping system. It is commonly used in pipelines where a change in direction is needed, and it can connect pipes of different diameters. The term "butt weld" refers to the welding technique used for connecting the elbow to the pipe.
Butt weld elbows are typically made of the same material as the pipes they are connecting. Common materials include carbon steel, stainless steel, and alloy steel. The choice of material depends on the specific requirements of the application, such as the type of fluid being transported and environmental conditions.
Butt weld elbows are known for their strength, durability, and the smooth flow characteristics they provide in a piping system. Butt weld elbows are available in different degrees of bend, such as 45 degrees, 90 degrees, and 180 degrees. The degree of bend determines the change in direction of the pipe. Follow our Linkedin
A Buttweld 45 degree elbow is a type of pipe fitting used in piping systems to change the direction of the flow by 45 degrees. This means that instead of a sharp 90-degree turn, the pipe or tubing is bent at a 45-degree angle. The purpose of using a 45-degree elbow is to redirect the flow of fluid or gas in a less abrupt manner compared to a 90-degree elbow. This can be beneficial in certain applications where a more gradual change in direction is preferred.

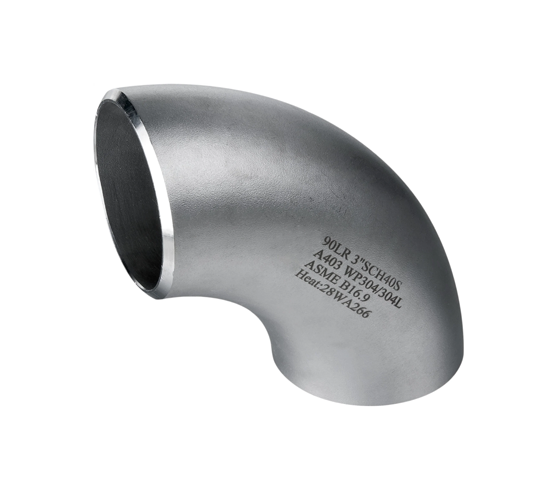

A Buttweld 90 degree elbow is a type of pipe fitting used in piping systems to change the direction of the flow by 90 degrees. This means that the pipe or tubing is bent at a right angle, resulting in a sharp turn. The purpose of using a 90-degree elbow is to redirect the flow of fluid or gas at a right angle. a 90-degree elbow might be preferred when a right-angle turn is necessary to navigate around obstacles or when connecting pipes at corners.

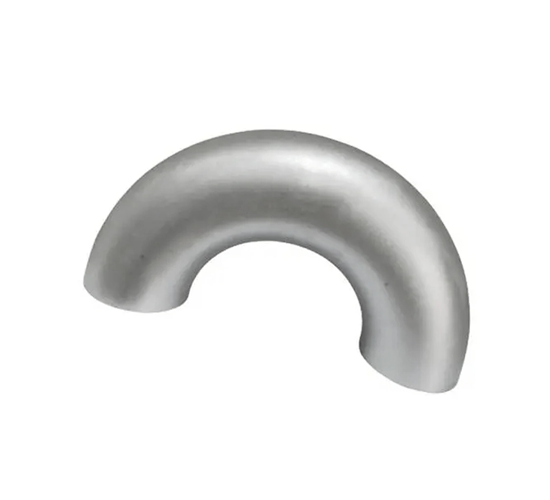

A Buttweld 180 degree elbow is a type of pipe fitting used in piping systems to change the direction of the flow by a complete U-turn, resulting in a 180-degree angle. This means that the pipe or tubing is bent in a manner that reverses the direction of the fluid or gas flow completely. a 180-degree elbow may be chosen when the piping system requires a complete reversal of direction.
Check ANSI B16.28 / ASME B16.9 Buttweld Elbow Dimensions Download
