ANSI/ASME B16.48 Spectacle Blind Flange

What is Spectacle Blind Flange?

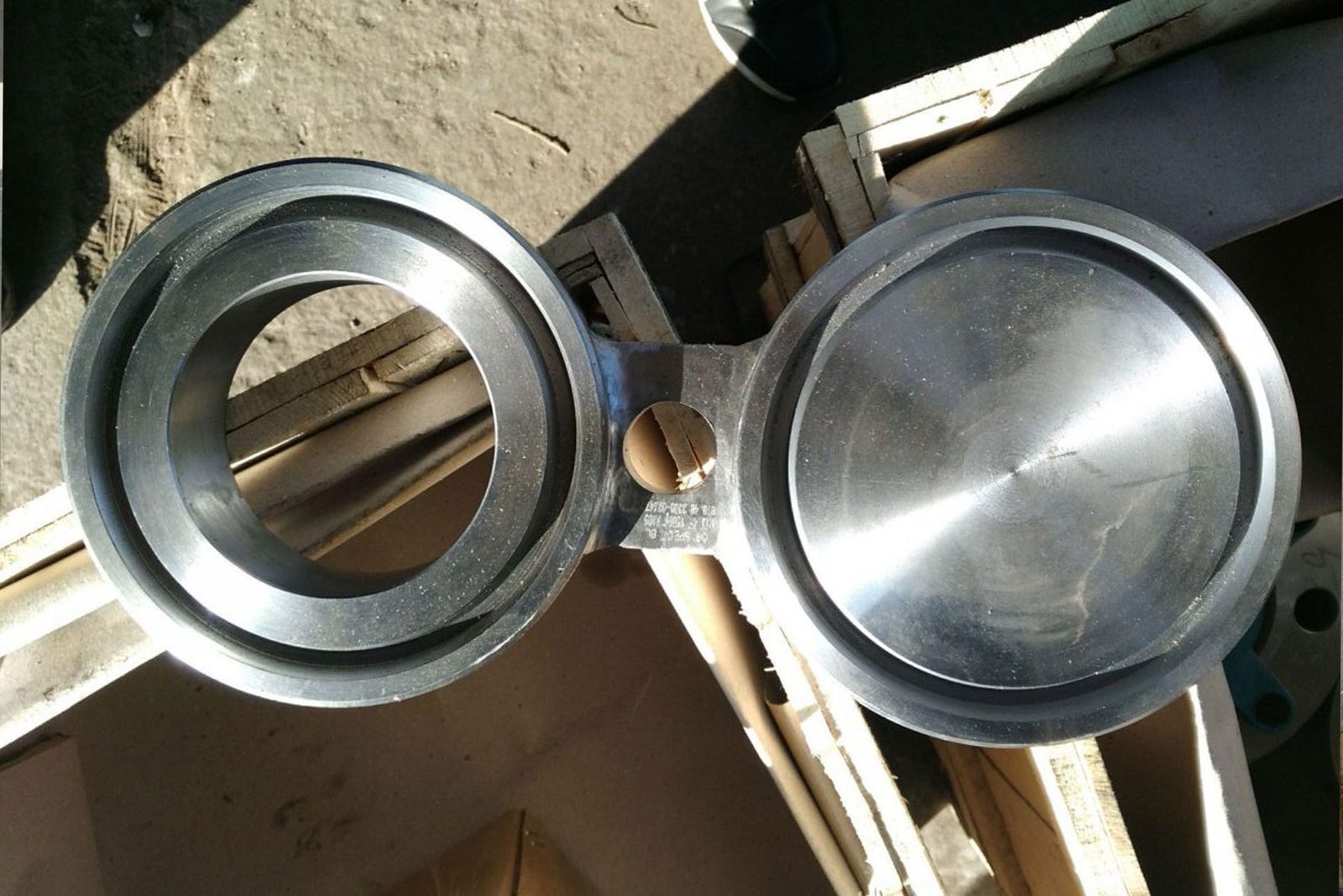

A Spectacle Blind Flange, also known as a spectacle flange or figure-8 blind flange, is a specific type of flange used in piping systems for temporary or permanent isolation of a section of the pipe. It consists of two metal discs connected by a hinge or a pivot pin, resembling the shape of a pair of eyeglasses or a figure-8, which gives the flange its name.

The primary purpose of a Spectacle Blind Flange is to provide a versatile solution for isolating a section of a piping system. The visibility offered by the open disc allows easy confirmation of whether the flow is blocked or allowed, making it useful during maintenance, repairs, or testing operations. The solid disc acts as a temporary or permanent closure when maintenance or isolation is required.

Spectacle Blind Flanges are manufactured in various materials and pressure classes to suit the specific requirements of different industries and applications. The choice of material and pressure class depends on factors such as the nature of the fluid or gas, pressure and temperature conditions, and industry standards.

Advantages of Spectacle Blind Flange?

Spectacle Blind Flanges offer several advantages, making them a preferred choice in certain piping system applications. While Spectacle Blind Flanges offer numerous advantages, it's important to consider the specific requirements of the application and adhere to industry standards when selecting and installing these flanges. Here are some key advantages of using Spectacle Blind Flanges:

1. Visibility and Flow Confirmation:

   • The distinctive design of Spectacle Blind Flanges with one solid disc and one open disc allows easy visual confirmation of the flow status. Operators can quickly ascertain whether the flow is blocked or allowed by observing the position of the open disc.

2. Versatility and Flexibility:

   • Spectacle Blind Flanges are versatile and can be used for both temporary and permanent isolation of a section of a piping system. The ability to swing the solid disc into the closed position or away for unobstructed flow provides flexibility in various applications.

3. Simplified Maintenance and Repairs:

   • During maintenance or repair activities, Spectacle Blind Flanges facilitate easy isolation of specific sections of a pipeline. The open disc allows access for inspection or work, and the solid disc provides a secure closure when needed.

4. Pressure Testing and Hydrostatic Testing:

   • Spectacle Blind Flanges are commonly used in pressure testing and hydrostatic testing of pipelines. By using the solid disc to block one side of the flange, pressure can be applied to the other side, allowing for testing without affecting the entire system.

5. Cost-Effective Solution:

   • Compared to other types of isolating flanges, Spectacle Blind Flanges can be a cost-effective solution. They provide the required functionality for isolation while offering visibility and ease of use.

6. Safety Isolation:

   • Spectacle Blind Flanges contribute to safety in industrial settings by allowing the isolation of specific sections for maintenance or emergency shutdowns. The clear visual indication enhances safety protocols during operations.

7. Pigging Operations:

   • In pipelines where pigging operations are performed for cleaning or inspection, Spectacle Blind Flanges are utilized to isolate specific sections during the pigging process.

8. Customizable Materials and Pressure Classes:

   • Spectacle Blind Flanges are available in various materials (such as carbon steel, stainless steel, alloy steel) and pressure classes, allowing users to select the appropriate flange based on the specific requirements of their application.

9. Easy Installation and Operation:

   • The design simplicity of Spectacle Blind Flanges makes them easy to install and operate. The hinge or pivot pin mechanism facilitates the movement of the solid disc, and the flange can be quickly aligned for different operational states.

10. Reduced Downtime:

    • The quick and efficient isolation provided by Spectacle Blind Flanges contributes to reduced downtime during maintenance, repairs, or testing, enhancing overall system efficiency.

Components of A Spectacle Blind Flanged Joint Are?

Solid Disc (Blind):

One of the discs is solid and does not have an opening, essentially acting as a blind flange. This solid disc is used to block the flow of fluid or gas when it is rotated into the closed position.

Open Disc (Spectacle):

The other disc has a central opening, allowing the fluid or gas to pass through when it is aligned with the pipe. This open disc acts as a spectacle, providing visibility and indicating the flow status.

Hinge or Pivot Pin:

The two discs are connected by a hinge or pivot pin, allowing the solid disc to be rotated into the closed position or swung away to align with the open disc for unobstructed flow.
